Dynamic Text (Process variables)
Feature available to: Editor • Admin
What is a dynamic text
Dynamic texts are pieces of what you write in a process box that is getting replaced as you go with a value.
Dynamic texts are short-codes that display up to date information automatically based on the properties of the source information. You can place these dynamic texts into a process box (Activity Box, Whybox, Note Box etc) anywhere on the process to display process information.
Example: typing {{ process_owner_name }} will display the current process owner's name.
Dynamic texts are most often used in Diagram Templates.

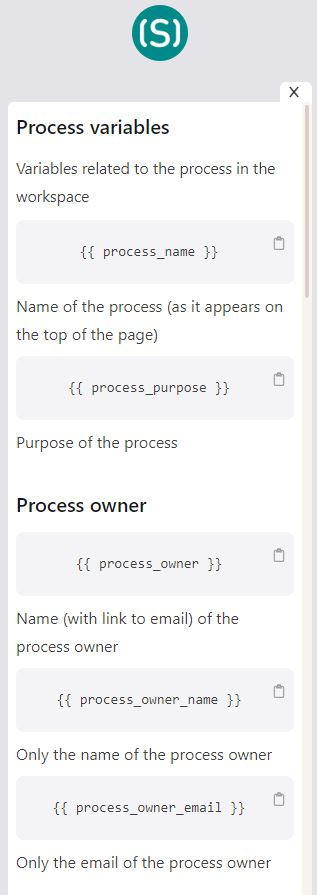

Available texts
{{process_name}} | The name of the process |
{{diagram_title}} | The title of current diagram's parent's box. At the top level, this is the process name |
{{process_owner}} | The process owner name if available or "(No process owner)" |
{{process_owner_name}} | The process owner name if available or "(No process owner)" |
{{process_owner_email}} | The process owner email if available or "(No process owner)" |
{{process_purpose}} | The process purpose if available |
{{process_published}} | If the current revision is published "Version X, approved by Y, on Date (This is the current version)" If the current revision was published, but is not the latest "Version X, approved by Y, on Date (This is the not the current version)" Otherwise "Draft Process" |
{{process_published_date}} | The date at which the process was published |
{{process_published_approvedBy_name}} | Name of the approval |
{{process_published_approvedBy_email}} | Email of the approver |
{{process_published_version}} | Version of the published process if available |
{{process_published_isCurrent}} | "Yes" or "No" if the current revision is the current published revision |
