(Legacy) Enable RACI, RATSI or a responsibility matrix in Skore

(Legacy) Enable RACI, RATSI or a responsibility matrix in Skore

What is it

Process mapping inevitably comes with a conversation about roles & responsibilities (and if it doesn't, you are not doing it right)

Skore makes it easy to capture roles on a box and "tag" them with responsibility matrix elements.

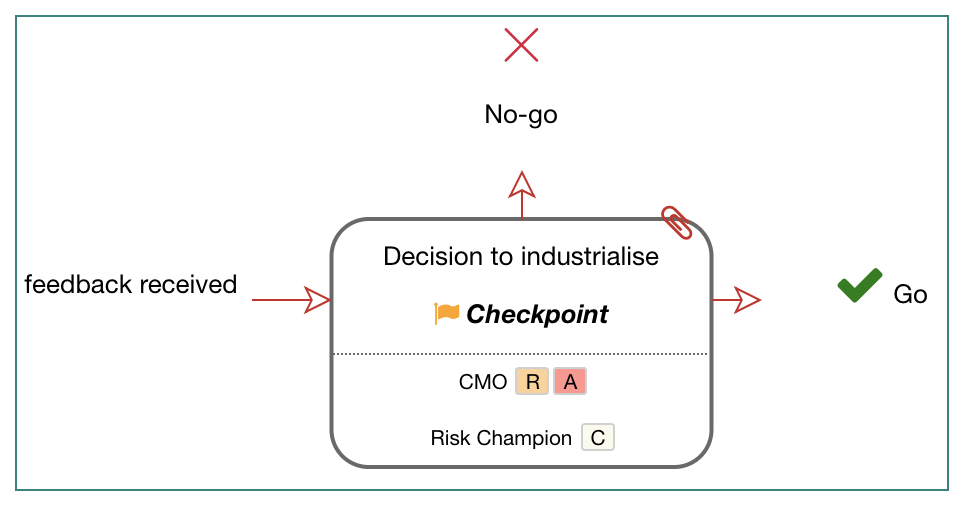

Example: box with Responsibility, Accountability and Consulted of RACI roles defined:

How to...

How to enable responsibility matrix

Open the menu Settings : Responsibilities model

Select your prefered model: RACI, RATSI, RAPID or create a custom one

Click Apply

How to assign RACI to a role in the process

Once you have enabled, edit a box as usual and you will have an additional row of button.

Editing the box:

How to see assignments

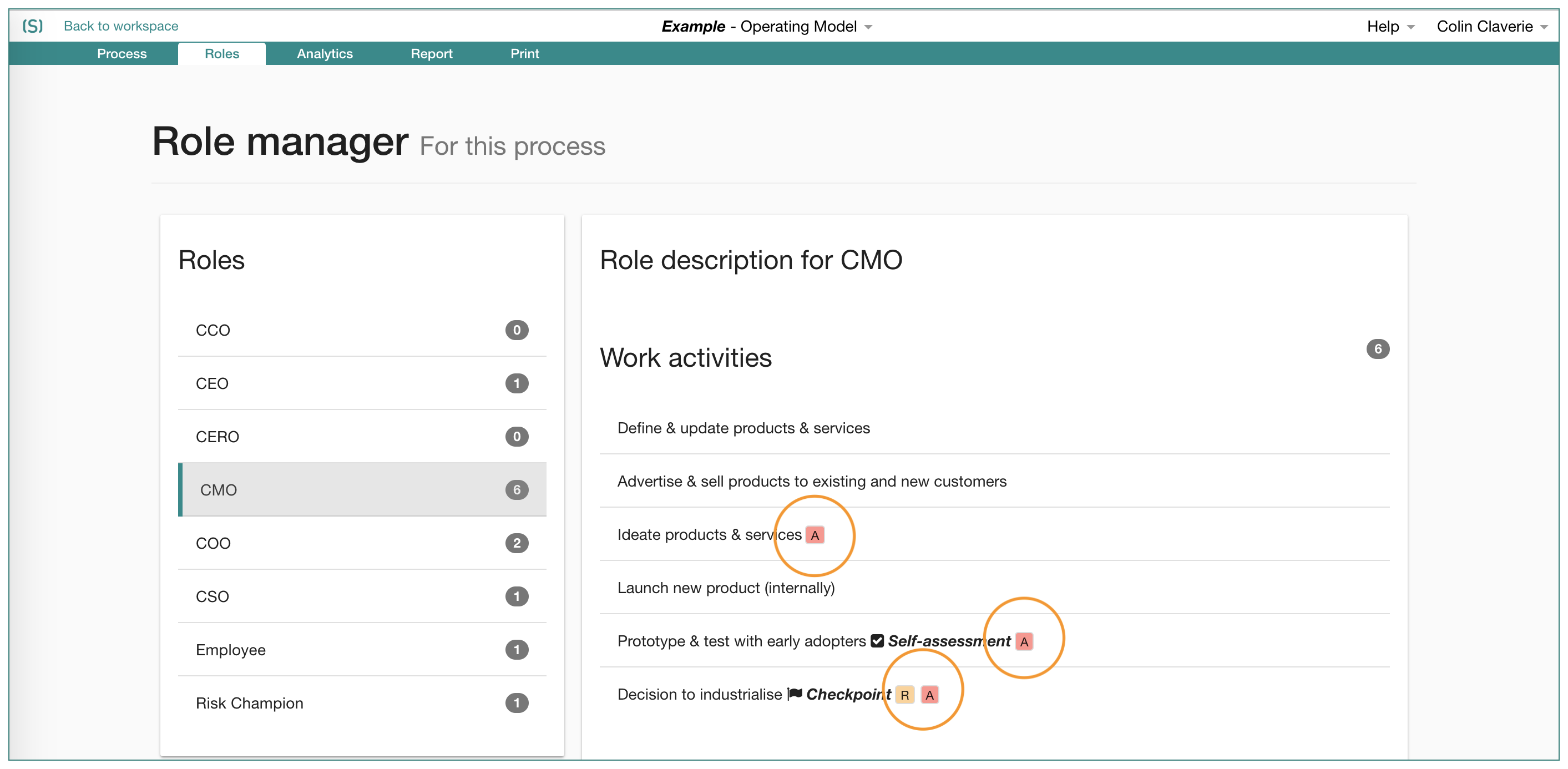

RACI / RATSI Tags will be shown next to each activity where a given role is involved in the role manager.

How to report on role assignments

In the Report for roles, you can easily extract all assignments for further analysis in excel for example

See also

  • Customize responsibility matrix
  • Report
